LeCroy 3377 Drift Chamber TDC

In June 1996 the LeCroy 4291 drift chamber TDCs for the VDCs of the Spectrometer 'Grand Raiden' were replaced by the LeCroy 3377 drift chamber TDCs, which have a low conversion time and a high speed ECL data port for faster readout. It also required a replacement of the CAMAC based data bus interface LeCroy 4299 with a VME based High Speed Memory CES 8170.

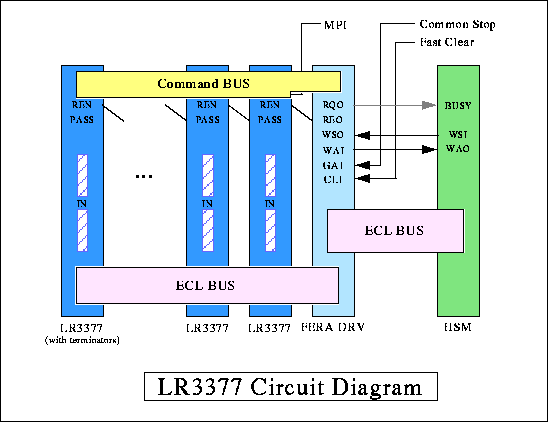

  1. LR3377 Circuit

  2. Data Format

    LeCroy 3377 Data Format

  3. Initialize

    How to initialize LeCroy 3377.


Last Updated: 07-JUN-1996
