Beam Line Layout

to Page Top

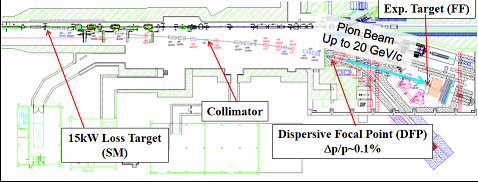

  • Plan view of the high momentum secondary beam line.

    left

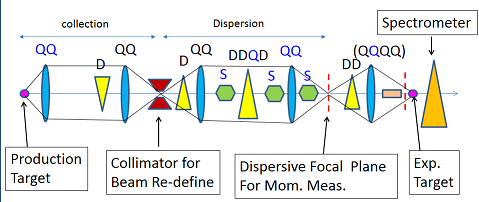

  • Schematic layout of the beam optical elements.

    left

Beam Optics

to Page Top

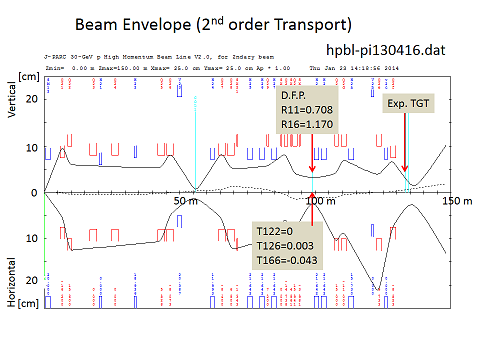

  • Beam envelope, calculated by TRANSPORT.

    left

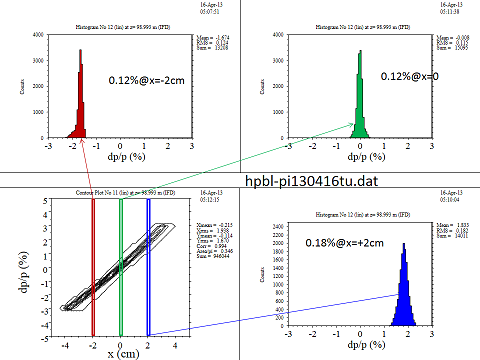

  • Correlation of a beam position with a momentum at the dispersive focul plane, calculated by Visual TURTLE.

    left




Expected Beam Intensity

to Page Top

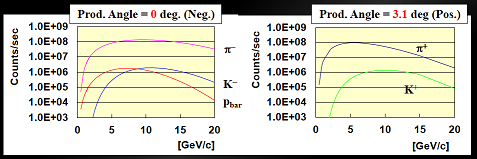

  • Calculated by using the Sanford-Wang formula.
    • Assuming 15 kW loss on Pt, Acceptance: 1.5 msr%, Total Length: 133.2 m

      left
