Specifications of the RCNP EN Course

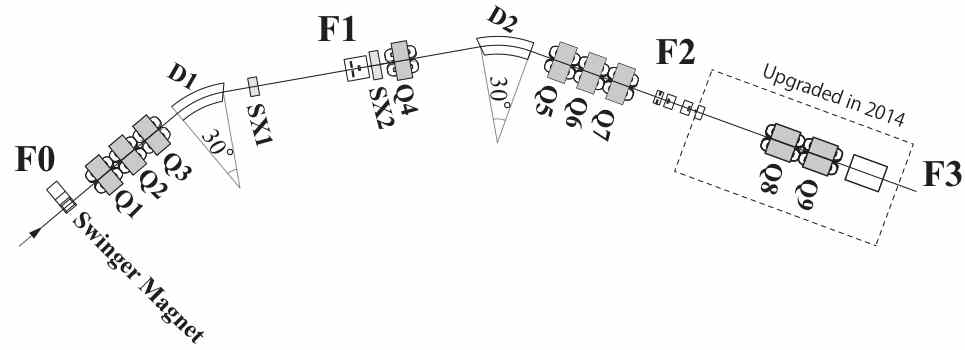

| Configuration | QQQDSX(F1) |
| SXQDQQQ(F2) | |
| QQ(F3) | |
| Maximum magnetic rigidity | 3.2 Tm |
| Energy acceptance | ΔE / E = ±8% |
| Angular acceptance | ΔΘ = ±20 mrad |
| Δφ = ±14 mrad | |
| Energy dispersion at F1 | 0.866 m |
| Tilted angle of F1 focal line | 90° |
| Energy degrader | uniform thickness |
| Tilted angle of F2 focal line | 86.6° |
| x magnification | 2.0 (variable) |
| y magnification | 1.4 (variable) |
| A dispersion | 6.51 mm/% |
| (d0/R = 0.5; variable) | |
| Z dispersion | -3.91 mm/% |
| (d0/R = 0.5; variable) | |
| A/ΔA (x0 = 0.5 mm) | 326 (d0/R = 0.5; without |
| energy straggling) | |
| Z/ΔZ (x0 = 0.5 mm) | 195 (d0/R = 0.5; without |
| energy straggling) | |
| Path length of the central orbit | 20.248 m |
