Shinbara Slits

Left, Right

Akimune Slits

Left, Right, Up, Down

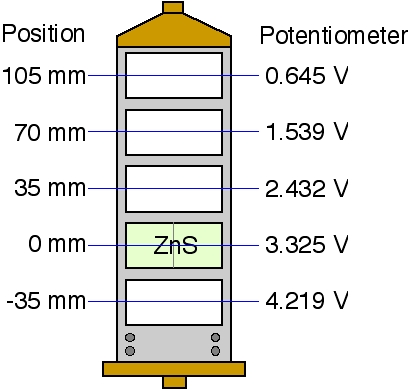

Target

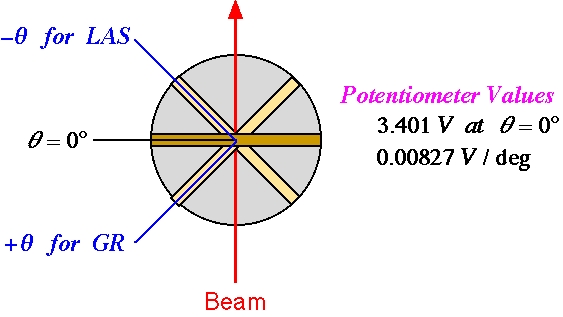

Position, Rotation

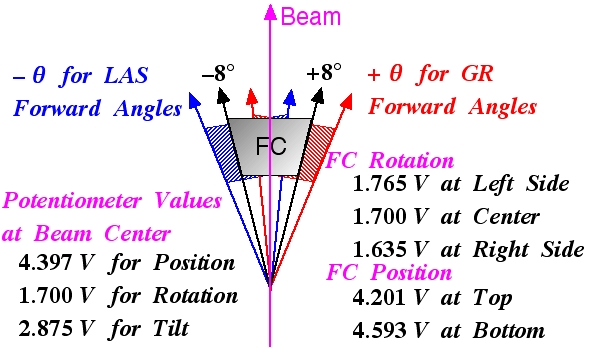

FC in Scattering Chamber

Position, Rotation, and Tilt

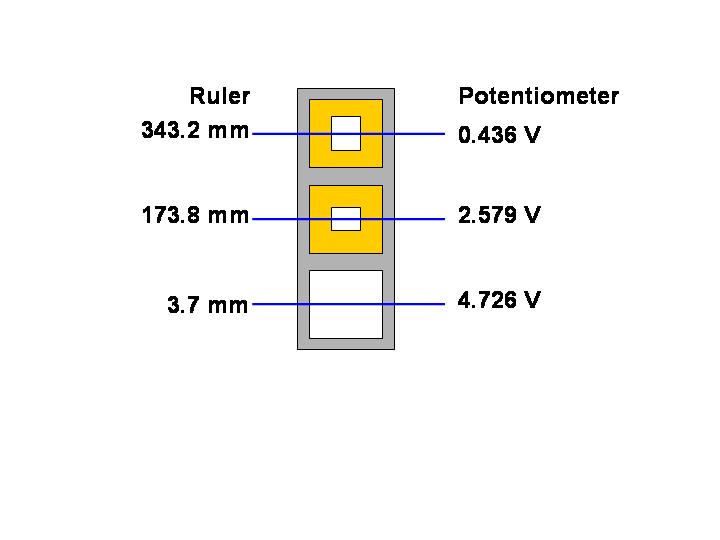

LAS Collimator

Position

Shinbara Slit Left

Data Plot and Fitting Result in PDF

Position from Beam Center (mm)	Potentiomenter (V)
100.0	0.779
95.6	1.009
76.0	2.011
56.0	3.012
36.2	4.011
20.7	4.787

Data Plot and Fitting Result in PDF

Position from Beam Center (mm)	Potentiomenter (V)
100.0	0.774
95.4	1.008
75.5	2.011
55.5	3.011
35.7	4.011
20.7	4.679

Data Plot and Fitting Result in PDF

Position from Beam Center (mm)	Potentiomenter (V)
1.0	4.247
11.0	3.736
21.0	3.244
31.0	2.740

Data Plot and Fitting Result in PDF

Position from Beam Center (mm)	Potentiomenter (V)
1.5	4.136
11.5	3.630
21.5	3.125
31.5	2.629

Data Plot and Fitting Result in PDF

Position from Beam Center (mm)	Potentiomenter (V)
0.0	4.219
10.0	3.715
20.0	3.205
30.0	2.714

Data Plot and Fitting Result in PDF

Position from Beam Center (mm)	Potentiomenter (V)
1.0	4.294
11.0	3.749
21.0	3.279
31.0	2.763

Data Plot and Fitting Result in PDF

Position from Beam Center (mm)	Potentiomenter (V)
-22	3.878
-13	3.672
0	3.329
13	2.982
22	2.767
48	2.096
57	1.874
83	1.196
92	0.988

Data Plot and Fitting Result in PDF

Rotation Angle (deg)	Potentiomenter (V)
0	3.401
-90	2.657

Data Plot and Fitting Result in PDF

Ruler Value (mm)	Potentiomenter (V)
343.2	0.436
173.8	2.579
3.7	4.726
