White neutron irradiation facility at RCNP

Conditions for white neutron production
Primary beam: 400 MeV proton
Maximum beam current: 1.1 μA
Beam sharing: No (single use)
Target: 65 mm thick tungsten block
Neutron production by a spallation reaction

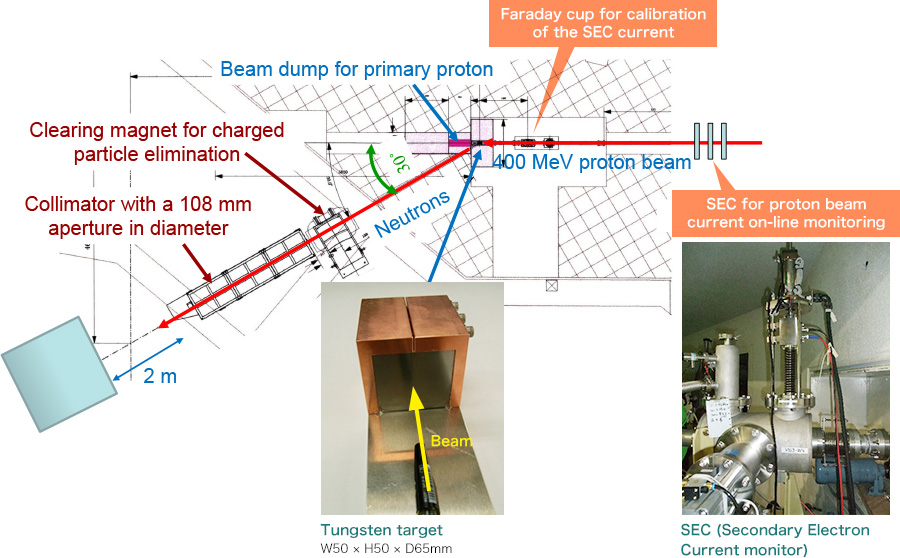

White neutron source at RCNP

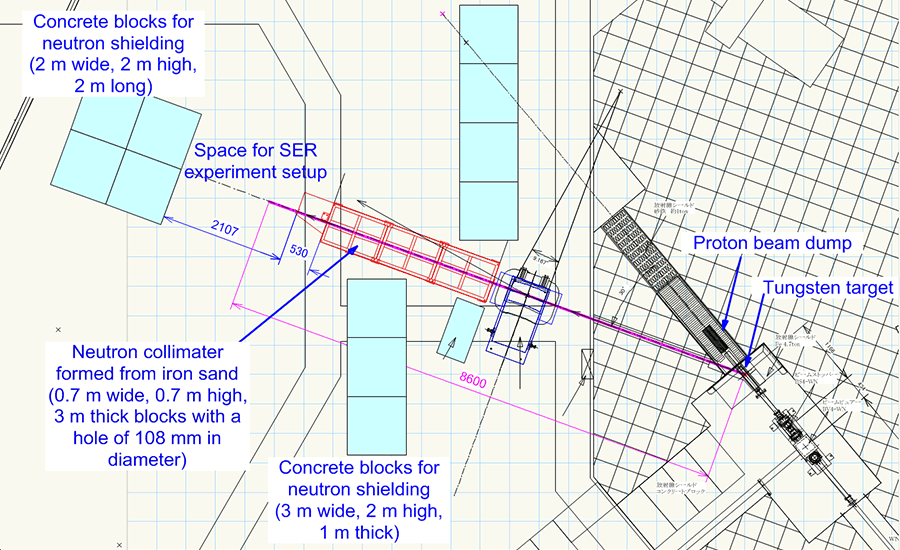

Neutron collimator and space for irradiation

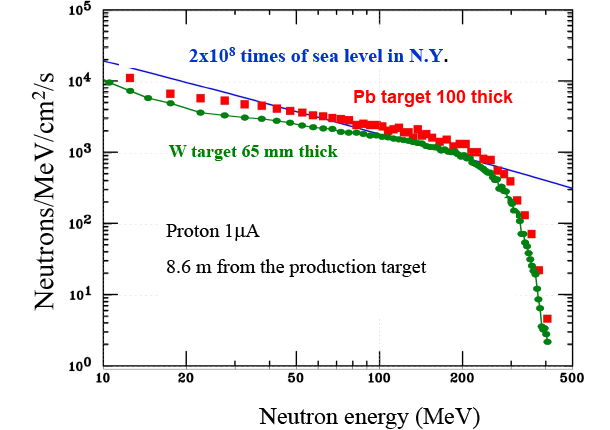

Neutron flux at RCNP

RCNP is one of best white neutron beams in the world [C. Slayman IRPS 2010]

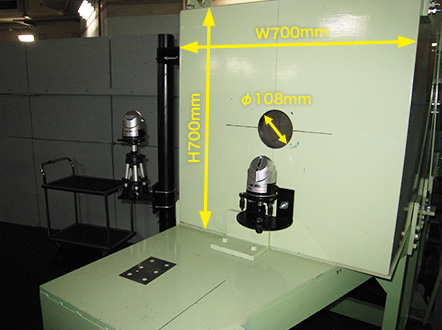

Exit of the neutron collimator

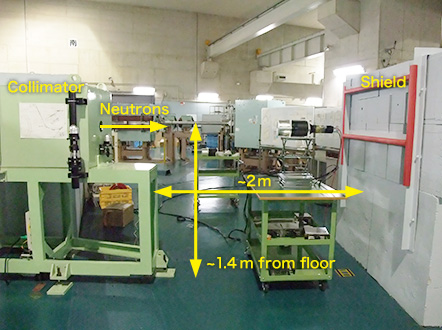

Irradiation area
