Use the same colors as matplotlib

I’ll try replicating Matplotlib’s color scheme in ROOT. You can set the colors using the code below.

std::vector<Int_t> GetMatplotlibColors()
{

  std::vector<Int_t> colors;

  colors.push_back( TColor::GetColor("#1F77B4") );
  colors.push_back( TColor::GetColor("#FF7F0E") );
  colors.push_back( TColor::GetColor("#2CA02C") );
  colors.push_back( TColor::GetColor("#D62728") );
  colors.push_back( TColor::GetColor("#9467BD") );
  colors.push_back( TColor::GetColor("#8C564B") );
  colors.push_back( TColor::GetColor("#E377C2") );
  colors.push_back( TColor::GetColor("#7F7F7F") );
  colors.push_back( TColor::GetColor("#BCBD22") );
  colors.push_back( TColor::GetColor("#17BECF") );

  return colors;

}

All that’s left to do is to read this function and pack it into vector<Int_t>. When using it, you can register it as needed with SetLineColor or SetMarkerColor.

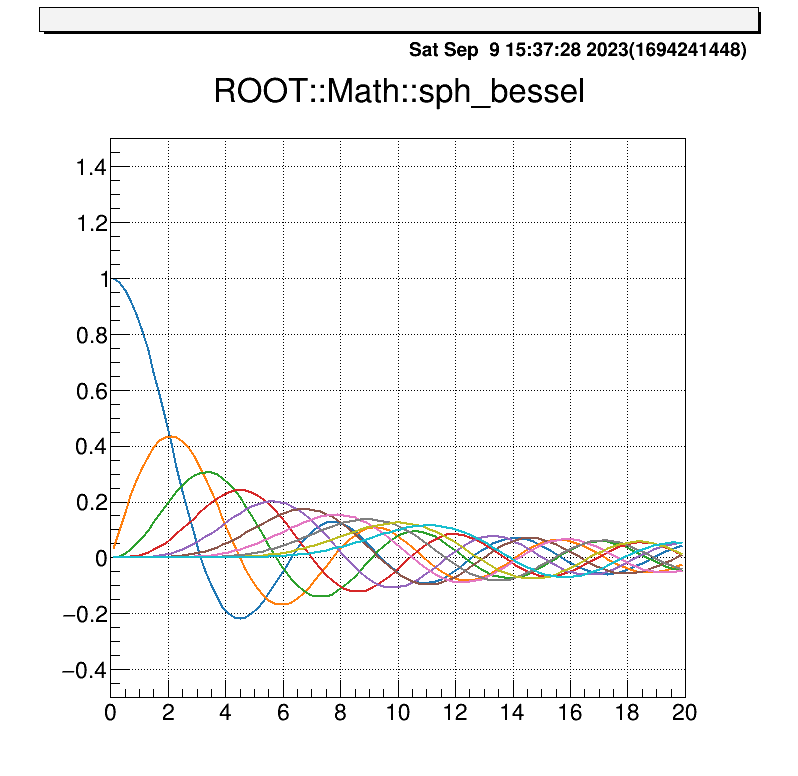

I’ll leave a sample code below. When executed, the following figure will appear.

std::vector<Int_t> GetMatplotlibColors()
{

  std::vector<Int_t> colors;

  colors.push_back( TColor::GetColor("#1F77B4") );
  colors.push_back( TColor::GetColor("#FF7F0E") );
  colors.push_back( TColor::GetColor("#2CA02C") );
  colors.push_back( TColor::GetColor("#D62728") );
  colors.push_back( TColor::GetColor("#9467BD") );
  colors.push_back( TColor::GetColor("#8C564B") );
  colors.push_back( TColor::GetColor("#E377C2") );
  colors.push_back( TColor::GetColor("#7F7F7F") );
  colors.push_back( TColor::GetColor("#BCBD22") );
  colors.push_back( TColor::GetColor("#17BECF") );

  return colors;

}

void matplot(){

  int num = 0;
  int imax = 9;
  int xmax = 20;

  std::vector<Int_t> colors = GetMatplotlibColors();

  TCatCmdZone::Instance()->Run(1,1,0.01,0.01);

  for (int i = 0; i <= imax; i++) {

    TF1* func = new TF1(Form("J_%d(x)",i), Form("ROOT::Math::sph_bessel(%d,x)",i),0,xmax);
    func->SetTitle("ROOT::Math::sph_bessel");
    func->SetLineColor(colors.at(num));
    func->GetYaxis()->SetRangeUser(-0.5,1.5);
    func->GetXaxis()->SetRangeUser(0,xmax);

    if(num==0){

      func->Draw();

    }else{

      func->Draw("same");

    }

    num++;

  }

}

fig fig
