Beam Line

Contents

Beam Line Layout†

to Page Top

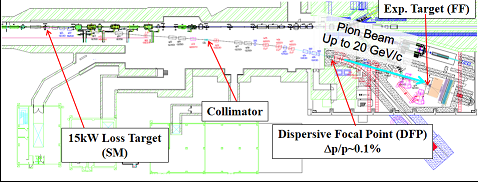

• Plan view of the high momentum secondary beam line.

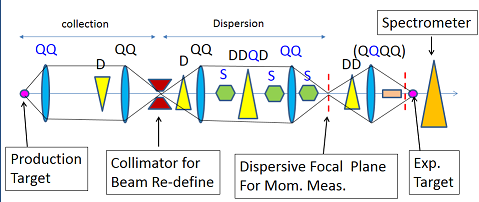

• Schematic layout of the beam optical elements.




Beam Optics†

to Page Top

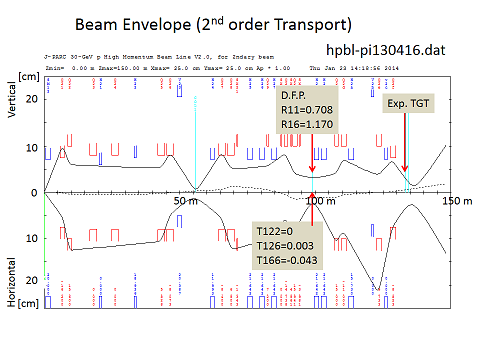

• Beam envelope, calculated by TRANSPORT.

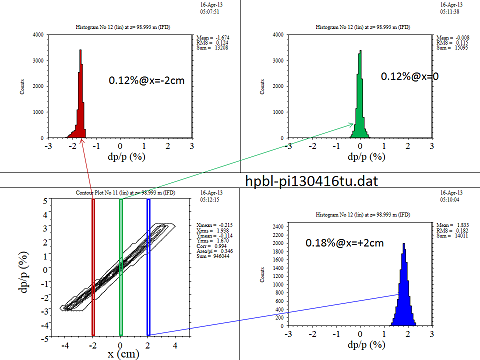

• Correlation of a beam position with a momentum at the dispersive focul plane, calculated by Visual TURTLE.





Expected Beam Intensity†

to Page Top

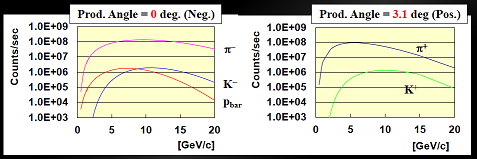

• Calculated by using the Sanford-Wang formula.
  • Assuming 15 kW loss on Pt, Acceptance: 1.5 msr%, Total Length: 133.2 m
